Informace o produktu

Popis produktu

Precise, smooth, industry-leading direct drive force feedback (35 Nm)
Industrial-grade servo motors engineered exclusively for Simucube
Enhanced detail – telemetry-based effects like ABS, RPM, and road texture
Completely re-engineered the control algorithm for maximum accuracy and silent performance
Frictionless setup – front & bottom mounting, versatile adapters

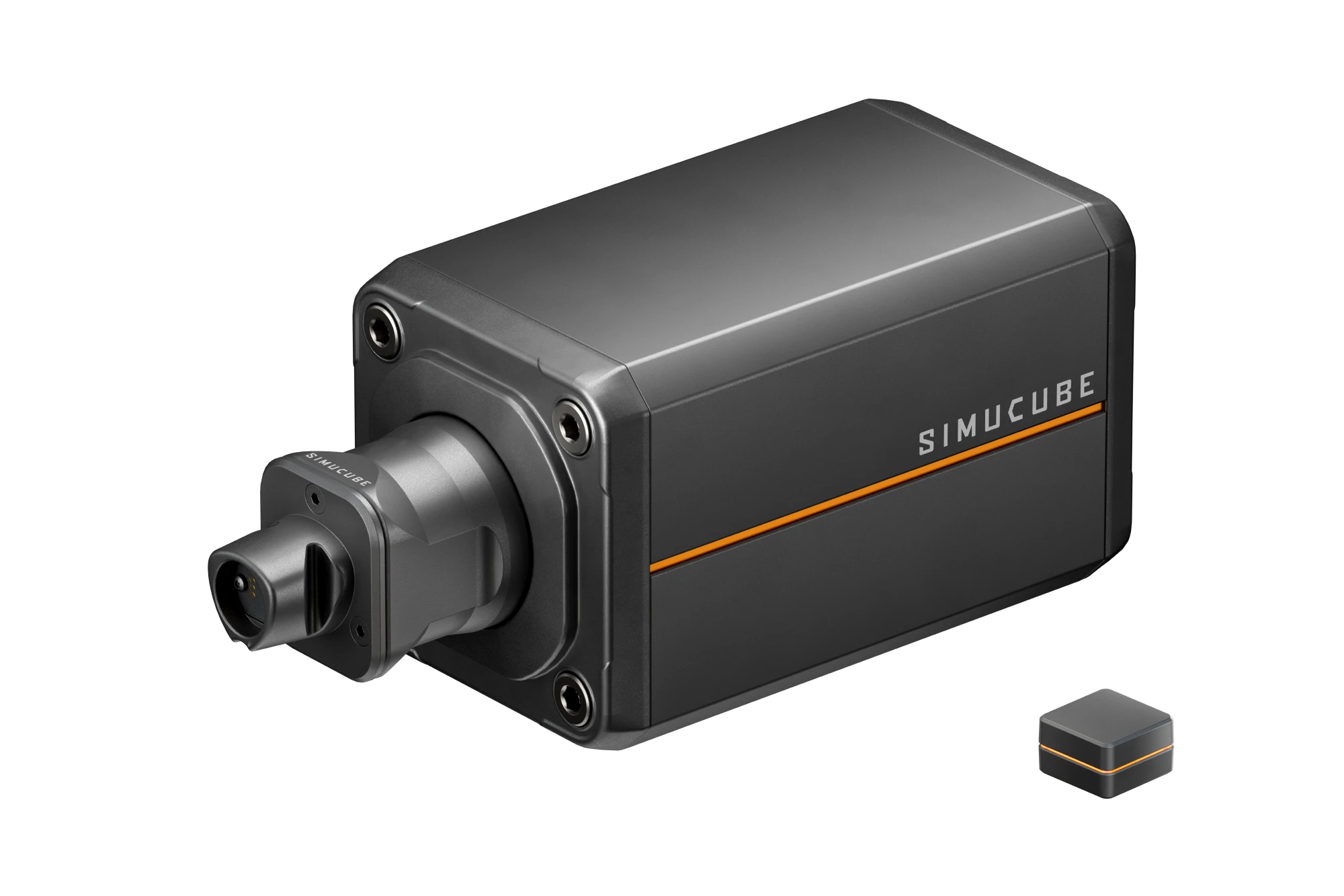

Simucube 3 Ultimate is a direct drive force feedback wheelbase that raises performance to an entirely new level, with demands so high it required a completely new type of motor. Featuring an advanced direct drive optimized IPM motor and it offers 35 Nm of torque with maximum response speed, all while using less power. Professional-grade performance, taken to the next level.

Note! One Simucube Link Hub is required to operate. If you do not own Simucube Link Hub, please choose the option “Including Simucube Link”.

If you want to use more than one Simucube Link Hub device such Simucube 3 and ActivePedals, please purchase the Teltonika Ethernet Switch.

Designed in Finland, manufactured in EU.

Parametry produktu

Technické specifikace

Technical details

Dimensions - Wheel base dimensions: 135 x 135 x 323 mm - Package dimensions: 190 x 300 x 390 mm - Mounting: Front and Bottom - Mounting hole pattern DIA: 135 mm and 78,4 mm - Flange centering feature DIA: 110 mm - Wheel base weight: 13 kg Specifications - Motor type: IPM motor. Maximum response speed. Direct drive optimized IPM motor - Max torque: 35 Nm - Angle sensor: 23-bit absolute (8 000 000 steps) - Power supply: 360 W (450 W peak) - Warranty: 5 years

Obsah balení

What's included?

- 1x Simucube 3 Ultimate wheelbase - 1x Power adapter - 1x RJ45 Cable - 1x AC power cord - 1x Quick Start Guide - 1x Control box Fasteners kit - 4x M8 washer - 4x M6 washer - 2x M5 washer - 4x M8x35 allen head bolt - 4x M8x30 allen head bolt - 2x M5x30 allen head bolt - 4x M6x16 allen head bolt - 2x M5 t-slot nut 8mm slot Does NOT include: Link Quick Release for Simucube 3, Simucube Link Hub

Kompatibilita

Compatibility

- Link Quick Release for Simucube 3 - One Simucube Link Hub is required to operate. If you do not own Simucube Link Hub, please choose the option “Including Simucube Link”.

Is my Simucube 2 steering wheel compatible?

Yes, all Simucube Wireless Wheels are compatible. You will need Simucube Link Hub for the data transfer, and you can continue to use USB-powered wheels. You also need to purchase the Simucube Link Quick Release. If your steering wheel uses a 50.8mm bolt pattern, then you must purchase our Simucube 50.8 mm to 70 mm Adapter.

Časté dotazy

How have you improved on the Simucube 2?

Simucube 3 improves on Simucube 2 in three main areas: - Feeling - Quick release - Easy of use Each wheelbase is now individually calibrated with a new control algorithm for maximum precision, silent operation, and consistent feel. Added telemetry effects like road texture, ABS, and RPM give more detail, and all-new motors deliver higher fidelity, while the Ultimate model uses a spoke-type IPM motor for faster response and more torque efficiency. The new Simucube Link Quick Release uses a harmonic polygon shape for maximum stability, with LightBridge technology providing contactless, wear-free power and data transfer. A new control box makes adjustments easier, letting drivers quickly change torque, damping, and other settings mid-race while also managing connected devices.

What is Simucube Link Hub and why do I need it?

Only one Simucube Link Hub is required. Simucube Link Hub is required because it is the backbone of all post 2022 Simucube devices. It is what connects all products together with reliable connectivity that removes the possibility for electromagnetic interference, the risk of which increases when adding high-powered devices to your rig. The option including Simucube Link Hub is by default selected on the product page. If you already own Simucube Link Hub, select "excluding Simucube Link Hub". You only need ONE Simucube Link Hub for all your Simucube devices to work. So if you own Simucube Valo GT-23 or any ActivePedal, you DO NOT need to buy another Simucube Link Hub. You do not need two Simucube Link Hubs!

Can I use my USB wheel with Simucube 3?

Yes, the USB cabled wheels work as they do with Simucube 2. You just plug it in like a normal USB device. For the mechanical connection, you need our Simucube Link Quick Release.

What are the mounting options?

You can front and bottom mount Simucube 3. You can also use the current Simucube Mount.

Is there USB passthrough?

We have developed Simucube Lightbridge, which is an elegant design specifically for sim racing technology. It allows for wearless and contactless power and data transfer with the Simucube Link Quick Release with compatible wheels. There is no USB passthrough. However, you may still use USB wheels as with Simucube 2.

What's the warranty?

Simucube 3 Pro & Sport: 3 years Simucube 3 Ultimate: 5 years Simucube Savu steering wheels: 3 years

What accessories / adapters are available?

We have developed a series of accessories/adapters: - Simucube 50.8 mm to 70 mm Adapter - Link Quick Release Adapter for Simucube 2 - Shaft Extension Kit for Simucube 3 - Simucube 3 70 mm Adapter - Simucube 2 Quick Release Adapter for Simucube 3 Let's talk about it join #simucube3
